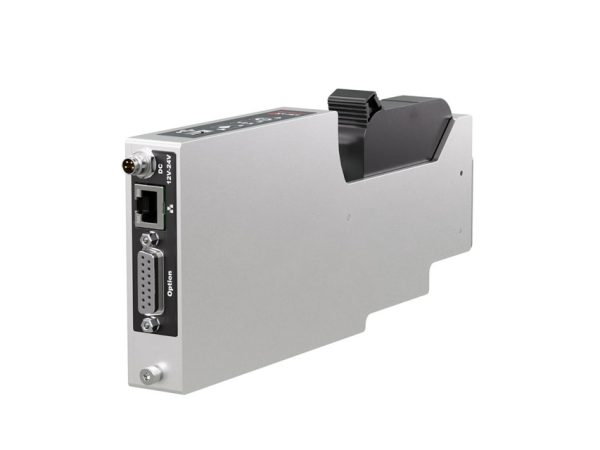

X1Jet Stitch

The X1Jet Stitch is an independently operating print system based on HP THERMAL INKJET TECHNOLOGY.  Its slim, space-saving profile allows the installation of multiple printers in environments where space is severely limited.   The X1JET Stitch is targeted for a range of different applications in the Food & Beverage, Pharmaceutical, Building Materials and other industries. The simple and intuitive 3-button operations with LED indicator lamps secure a user-friendly system control.  Up to nine layouts can be selected and printed.  Optional external photo eye sensor.

Features of the X1JET Stitch:

• High quality shaped and anodized aluminum housing
• Patented cartridge mounting “click and print”
• Electronics located behind the cartridge
• Variable controlled by interface
• Simple layout – and parameter transfer via USB stick
• Stack-ability for multi-use applications
• Ideal for confined installation conditions

Key performance specifications:

• Max print speed – 90 m/mm
• Max print height – 12.5 mm
• Max resolution – 50 to 900 dpi (horizontal)
• Max resolution – 300 to 900 dpi (vertical)
